Used Paper Machine Components and Paper Mill Equipment for Sale. Including Pulp Mill, Power Plant, Steam Plant and other Surplus Papermaking Machinery .
130" Horizontal Track Reel, Manufactured by GL&V. Dimensions: 129.25" Drum Face, 84" max Roll Diameter. Year 2018 Upgrades: Include New Primary & Secondary Arms for added automation and control. Reel was rebuilt utilizing the existing reel drum, reel bases, and reel doctor. New Primary and Secondary Arms were added with new Pneumatic cylinders and controls and other drive components.
Manchester Suction Couch Roll 142" Bearing Centers 125" Face 118.5" Drilled Face 1/2" Hole Diameter 1" Roll Cover Thickness 25.31" Roll Diameter Bronze Cover
111” drill face x 24” diameter Manchester suction press roll bronze shell 118” overall face 133.5” bearing centers. Suction box has 4” opening includes doctor and creeping assemblies.

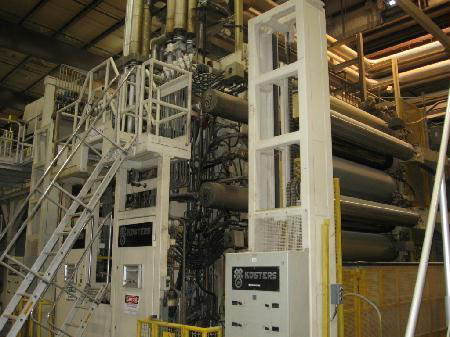

120” (3048mm) Face Width 2 or 4 Roll Kusters Calender 2 by 2 Tandem Compact Soft Nip Calender by Hunt & Moscrop. Maximum Nip Pressure 1000 PLI; Swimming Roll Cover Hardness 91-92 Shore 'D'; Operating Speed Balanced for 280-800 Ft/Min. (85-243 M/Min.). Drive Roll Surface Hardness 540 D.P.N Drive Roll Surface Temperature 250 F Degrees Swimming With Hydrualic Drive Control Panel And Spare Rolls Mfg: Kusters.
244” Voith Janus 8-roll On-machine Calender. This Hot Soft Nip calender is balanced for a maximum speed of 4000 FPM. It Operated at 3000 FPM producing high gloss grade papers in line with a paper machine. The multiroll calender is the latest technology new in the early 2000’s. It includes the hot oil system and any available spare parts as well as drive components. The Voith Janus calender offers the option to produce standard newsprint in addition to SC grades in either the very top or very bottom calender nip. In the case of wood-free coated papers for example the Janus calender enables 50 plus to high-gloss grades. In the case of uncoated papers newsprint or improved newsprint can be produced in addition to SC qualities (SC-A SC-B). Available immediately.
