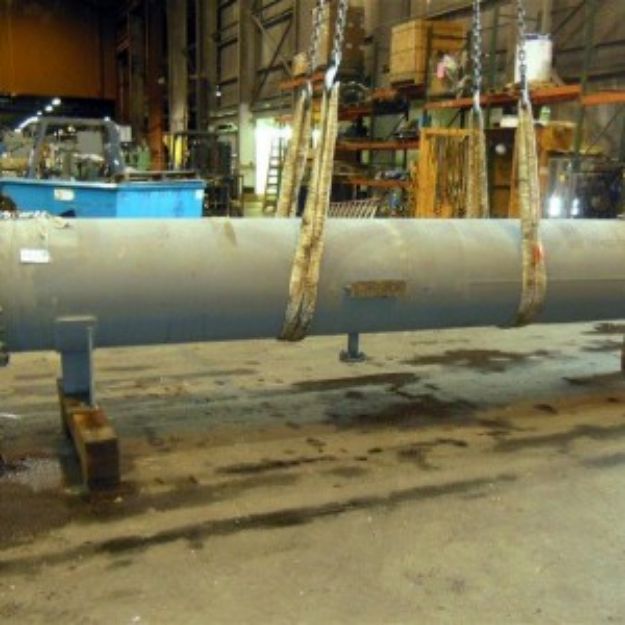

1160 Sq.Ft. Graham Corporation Multi-Pass Shell & Tube Heat Exchanger Surfa

Manufacturer: Graham Corporation
SKU: 126173
1160 Sq.Ft. Graham Corporation Multi-Pass Shell & Tube Heat Exchanger Surface Area: 1160 SF Horizontal. UNUSED Condition. Carbon steel shell rated Full Vacuum & 20 psig at 250 degrees F. (370) 3/4” Diameter x 16” long 304 stainless steel tubes rated 400 psig at 250 degrees F. 304L Stainless steel tube sheet carbon steel heads. Openings shell 18” vapor outlet 4” vapor inlet 2” condensate outlet openings heads (2) 8”. Mounted on (2) saddles. Built 2002.
Products specifications
Equipment ClassPulp Mill Process
Year2002
TypeMultipass
Metalurgy306 Stainless
Size1160 Sq.Ft.
*
*
*
